Lubi Make Gear Motors & Gear Heads

Technovision Control Systems Pvt Ltd are Authorised Dealers & Distributors for Lubi Make Gear Motors of LGM Series.

Ratings Available : 6W , 15W , 25W, 40W, 60W, 90W, 120W, 140W, 180W, 200W, 250W
Frame Size : 60mm ( for 6W) , 70mm(for 15W), 80mm(for 25W), 90mm(for 40W,60W,90W,120W), 100mm(for 140W,180W,200W,250W)
Voltage : 230V Single Phase / 230V 3 Phase / 440V 3 Phase
Speed : Variable with Speed Controller or VFD / Constant
Gear Head : With Gear Head / Without Gear Head ( Options Available )
Shaft Type ; Pinion Shaft / Round Shaft
Brake Models also available

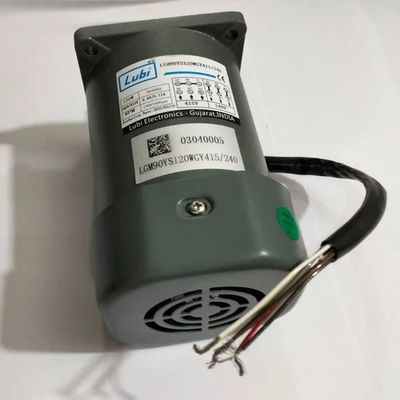

Models: LGM90YS90WGY415/240, LGM90YS40WGY415/240, LGM80YS25WGY415/240, LGM100YS250WGY415/240 etc
Options: With Terminal box / Without Terminal Box
We Don't Supply Motors above 250W in this LGM series.

Applications : Conveyors, Packaging Machines, Pharma Machines, Printing Machines, General Applications

Technovision Control Systems Pvt Ltd are Authorised Dealers & Distributors for Lubi Make Gear Heads of LGH Series.

Ratio Available 3,5,6,7.5,10,12.5,15,18,20,25,30,50,60,75,90,100,120,150,200,250
Type : Inline Gear Head / Inline Ear Flange / Right Angle
Frame Size: 60mm ( for 6W) , 70mm(for 15W), 80mm(for 25W), 90mm(for 40W,60W,90W,120W), 100mm(for 140W,180W,200W,250W)
Models: LGH60GK10HK , LGH70GK25HK, LGH80GK50HK,LGH90GF50H15K, LGH100GF100HK etc

Technovision Supplies Speed Controller for 1Ø AC Motors up to 120W

Analog Speed Controllers with Models: WSP-6W, WSP-15W, WSP-25W, WSP-40W, WSP-60W, WSP-90W, WSP-120W, WSP-180W, WSP-200W, WSP-250W
Digital Speed Controller with Models: WXK-6W, WXK-15W, WSK-25W, WSK-40W, WSK-60W, WSK-90W, WSK-120W, WSK-140W, WSK-180W, WSK-200W, WSK-250W
Above Models are all applicable for Single 230V Only

To Control the Speed of 3 phase AC Motors, Technovision Supplies AC Drives of 0.25 hp , 0.5 hp for above AC Motors
